Cel-Fi GO Stationary Repeater Installation in Shepparton

Your Preferred Cellular Signal Booster by Telstra

“Connect” With An Expert

Cel-Fi GO Features


  • A solution approved by Telstra, meeting ACMA regulations.
  • Amplifies and disburses a Telstra 3G/HSPA/4G (LTE) mobile signal, boosting one frequency band at a time.
  • Provides manual selection of 3G/4G and also the ability to utilise auto band selection.
  • Once installed, Cel-Fi GO has Automatic Gain Control (AGC), which continuously monitors system path loss to deliver maximum gain up to 100dB.
  • Provides a mobile coverage area of 900m2.
  • Rigid cast-aluminium casing with IP54 rating, suitable for adverse environments.
  • Network-safe protection that monitors mobile base stations in real-time to ensure no interference with the normal function of the mobile network.
  • Uplink Muting Mode automatically shuts down uplink cellular transmissions when no active user equipment is detected.
  • Cel-Fi GO supports Bluetooth Connectivity or a Micro USB connection to Nextivity’s Smartphone or PC WAVE app.
  • The intuitive WAVE app allows quick and easy installation by a trained technician.
Note:
Cel-Fi GO will provide a coverage area sufficient for multiple simultaneous users, between 5 and 20 depending on the activity.

The 4G/LTE bands can only be utilised for data unless both the smartphone and the local network support VoLTE. You will need to check your smartphone to confirm it has VoLTE functionality.
cel fi go
building pack

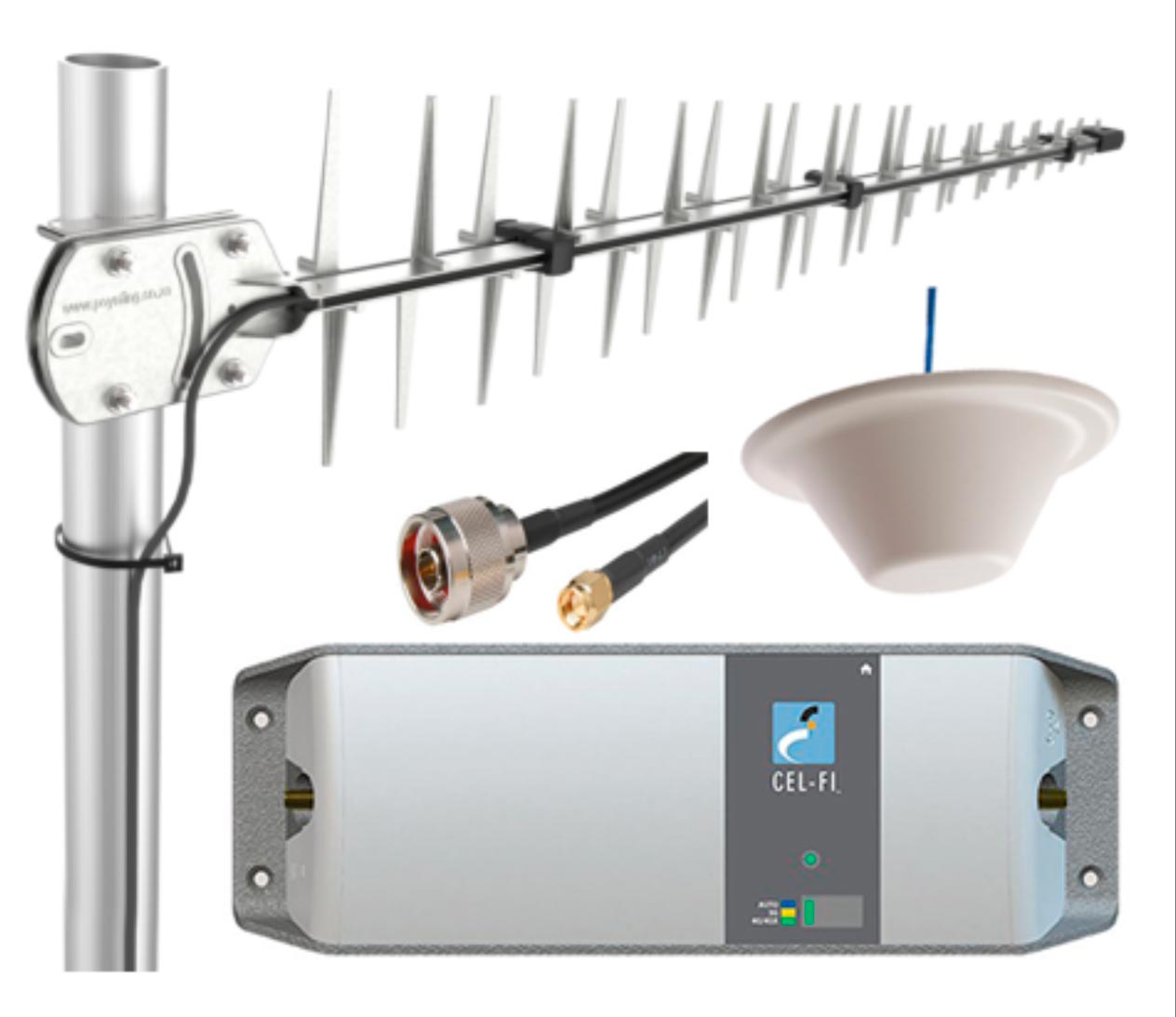

Base Building Pack

Specifications

Model Cel-Fi GO for Telstra � Stationary Version
Cellular Bands 3G 850 & 4G 700/1800 MHz (One frequency band at a time)
System Gain Up to 100 dB
Dimensions Size: 28MM (H), 87MM (W), 255MM (L), Weight: 600g
Environment Operating temperature: 0? to 65?C
Storage temperature: -25? to 65?C
Relative humidity: 0 to 95% non-condensing
Power 12 VDC via external supply
External supply: 100 to 240 VAC, 47 - 63 Hz
Power consumption less than 15W per unit
Antenna Requirements SMA Female Outdoor Antenna Connectors
SMA Female Indoor Antenna Connectors
Warranty Cel-Fi GO is covered by a 24-month warranty

Installation


Your Cel-Fi GO is approved by Telstra if installed correctly. Only qualified resellers who have undertaken product training on the required precautions should install the Cel-Fi GO. Misuse of this equipment could result in injury and equipment damage.

Cel-Fi is the choice of professionals to improve in-building mobile coverage. So get in touch with the team at John Stasey Antenna's & Satellite Dish Installation to request an installation or for more info.

Install Cel-Fi GO


Cel-Fi GO is the ideal smart repeater to boost and distribute 3G/4G mobile signals in your building.
